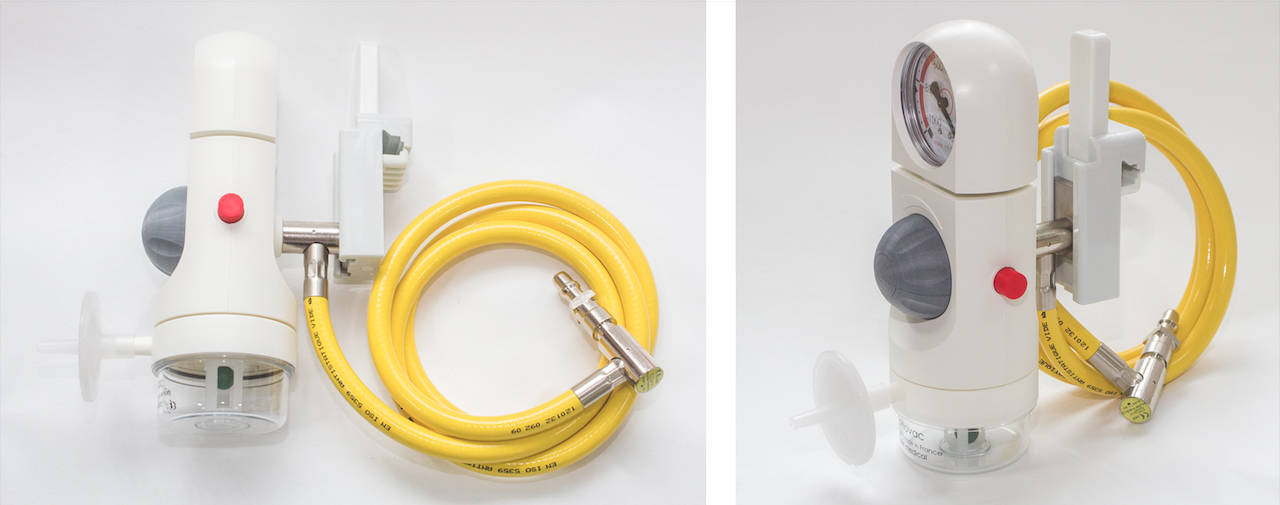

nanovac, rail-mounted
The vacuum regulator is available with metal slider and standard plastic claw for rail mounting. It is connected to a hose with nozzle (NF, DIN, BS or UNI).
nanovac, rail-mounted
The vacuum regulator is available with metal slider and standard plastic claw for rail mounting. It is connected to a hose with nozzle (NF, DIN, BS or UNI).
| Design | ABS body with brass insert, nickel plated brass slider | |
| Gas | Depressurized air | |
| Connection | Slider and claw for 30x10mm rail, NF, DIN, BS or UNI tips | |
| Inlet pressure | from 0 to -90 kPa (-900 mbar) | |
| Outlet | Teat for bacterial filter or silicone hose | |
| Accuracy | +/- 1.6% of the full scale of the vacuum gauge | |
| Dimension/Weight | 225x160x180mm (HxWxL) / 1 050g (with filter, bottle and connection to the rail and 1.5m hose) | |
