mullermedical

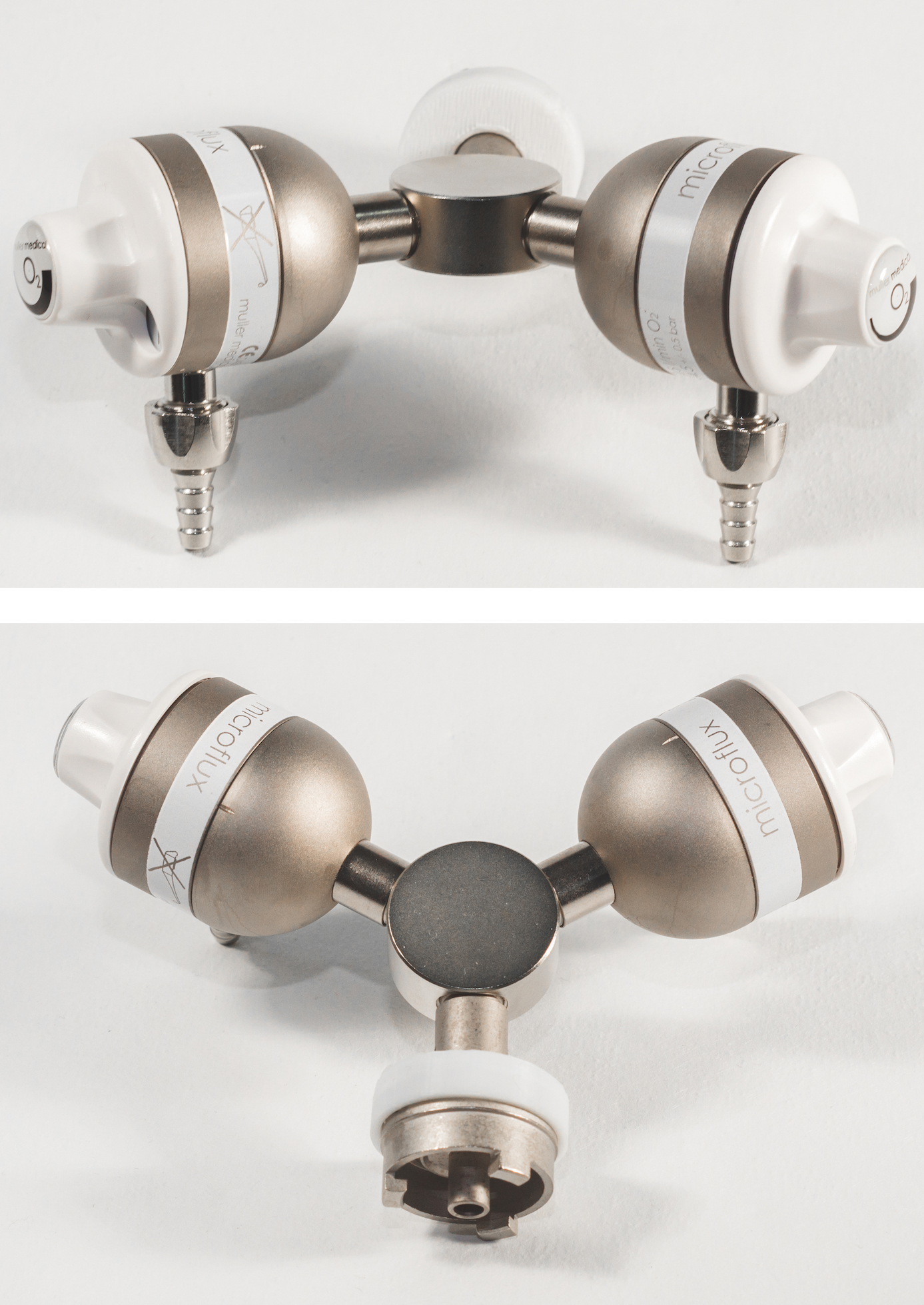

microflux, twin flowmeter

Two flowmeters can be mounted on a twin probe for quick connect to wall gas wall outlet. The NF, DIN, BS or UNI probes are available. Combination of the different flows are possible upon request.

Design Body, double probe support, nickel-plated brass
Gas O2 or Air (other gases upon request)
Connection 12x100 for probes according to NF, DIN, BS or UNI
Inlet pressure 450 kPa ± 50 kPa
Outlet 9/16“, 1/4" or 12x125 for nipple or humidifier
Accuracy ±10% or +/-0.5 l/min (according to ISO 15002)
Dimension/Weight 68x65x100 mm (HxWxL)/ 850 g
