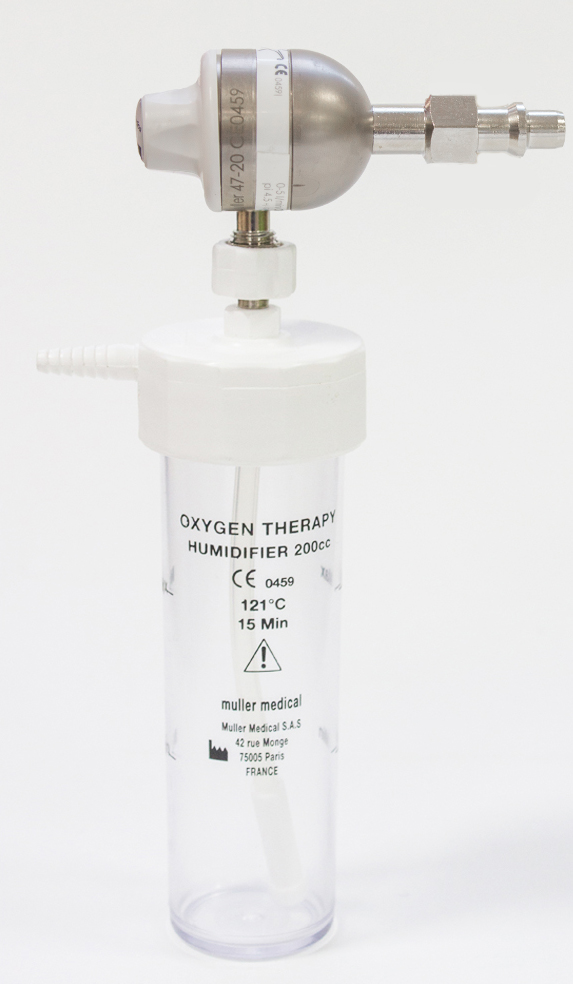

microflux with humidifier microbulle
The flowmeter can be connected to a humidifier microbulle type with a 12x125 or 9/16" thread. Several combination are possible with flow (1 l/min to 15 l/min), fluids (air or oxygen) and the tank.
| Design | Body and connection: nickel-plated brass Tank: plastic, PC or PS | |
| Fluids | O2 or Air with sterile water for humidifier | |
| Connection | 12x100 for probes according to NF, DIN, BS et UNI | |
| Inlet pressure | 450 kPa ± 50 kPa | |
| Outlet | Nipple 6 mm | |
| Accuracy | ±10% or +/-0.5 l/min (values according to ISO15002) | |
| Dimension/Weight | 315x64x90mm (HxWxL)/ 550g (200 ml plastic) | |
