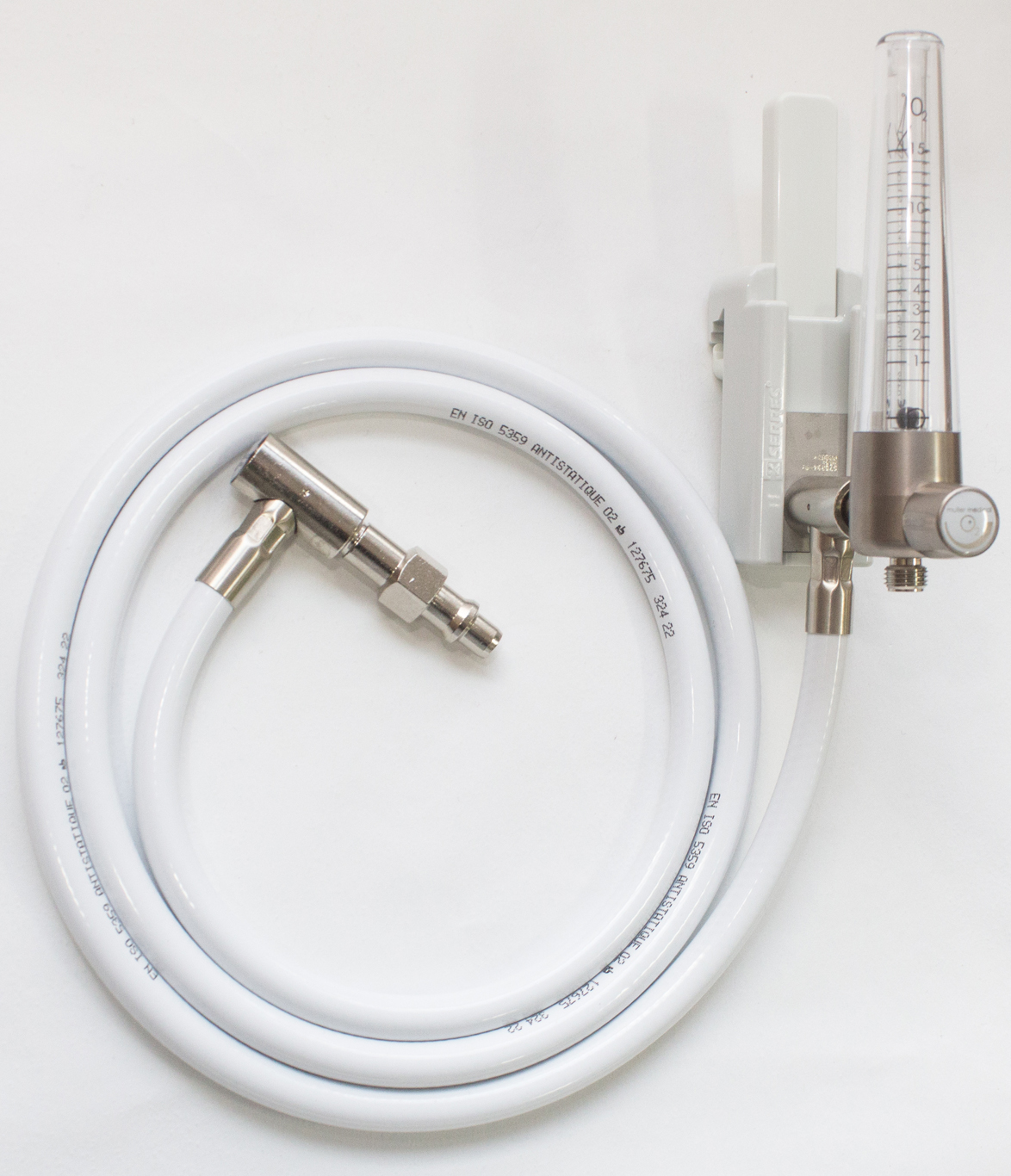

nanotube, rail-mounted
The flowmeter is available with standard clamp and metal cursor for rail mounting. It is connected through a hosepipe with plug-in probe to gas wall outlet(NF, DIN, BS ou UNI).
| Design | Body nickel-plated brass, steel cursor | |
| Gas | O2 or Air (other gases upon request) | |
| Connection | Cursor and clamp for standard rail 25x10mm, hose pipe and probes NF, DIN, BS or UNI | |
| Inlet pressure | 450 kPa ± 50 kPa | |
| Outlet | 9/16“, 1/4" or 12x125 for nipple or humidifier | |
| Accuracy | ±10% or +/-0.5 l/min (values according to ISO 15002) | |
| Dimension/weight | 165x110x30 mm (hxlxw) 570 g | |
