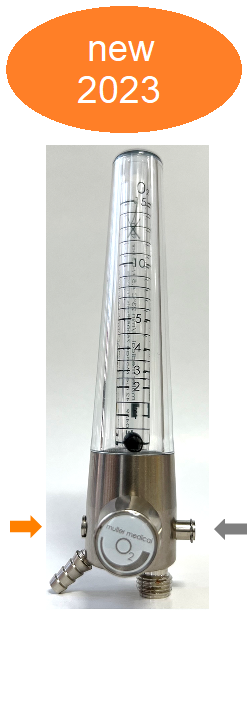

nanotube dual, flowmeter with flow switch

nanotube dual is a time saver with integrated flow switch. Selection between horizontal nipple or vertical outlet for humidifier. Compact and light, Nanotube dual connects directly to gas outlet. The DIN, BS or UNI probes are available as well as rail-mounting.

Design Body, nickel-plated brass
Gas O2 or Air (other gases upon request)
Connection 12x100 for probes according to NF, DIN, BS or UNI
Inlet pressure 450 kPa ± 50 kPa
Outlet 9/16“, 1/4" or 12x125 for nipple or humidifier
Accuracy ±10% or +/-0.5 l/min (according to ISO 15002)
Dimension/weight 155x90x40mm (hxlxw)/ 300g
